"MEISTER" elements : Material washing nozzles : Plastic mash : Steel wire mesh : Mesh ending models
Mesh ending models
Steel mesh are delivered complete, ready for installation. At the same time, it is necessary to pay special attention to fastening and tightening the net in order to ensure high sowing quality and long network life.

Some of the most commonly used hemming models are:
Mash ending type "A" - paralel
Hemming with parallel tightening part. Can be used with longitudinally or laterally stretched nets. The angle of the upper edge in relation to the lower one is 10-20 °, with a radius of 4 mm. Can be used for nets with wire thickness up to 12.5 mm.
Mash ending type "A1" - standard
The most commonly used hemming, with an angle of the upper part in relation to the lower part of 30 °. Can be used with longitudinally or laterally stretched nets. With a radius of 6 mm. Can be used for nets with wire thickness up to 12.5 mm.
Mash ending type "A4"
The hem is made of 5 mm thick steel sheet. The mesh is electrically welded on the upper or lower side of the sheet. This type of hemming is exceptional for longitudinal tensioning of nets. It is used for sheathing nets with wire thicknesses from 7 mm to 20 mm.

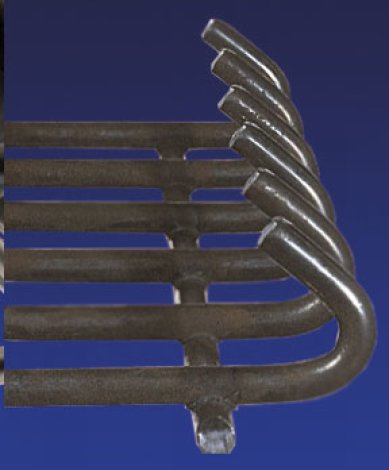

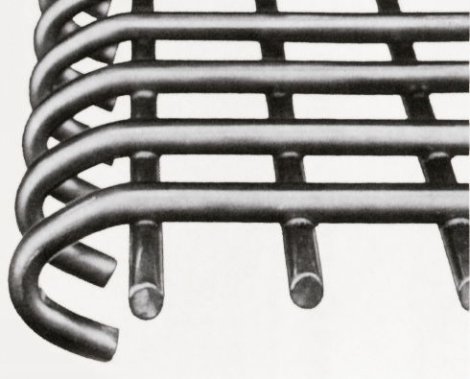

Mash ending type "A5"
The hem is made by bending the end of the mesh at an angle of 120 °. This type of sheathing is used for sheathing mesh with wire thicknesses up to 16 mm.
Mash ending type "A7"
This type of sheathing is used for mesh with small openings and small wire thicknesses (maximum wire diameter is 1 mm). The shape of the hem varies depending on the purpose.
