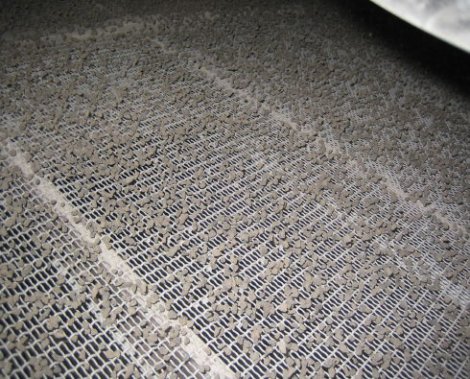

Steel wire mesh

Steel wire mesh, manufactured by "Meister" with its wide range of models, can fulfill any sowing requirement. All nets are made of special high-quality and extremely strong wire. The wire for the nets can be made of spring steel or stainless steel, all according to DIN 17223.

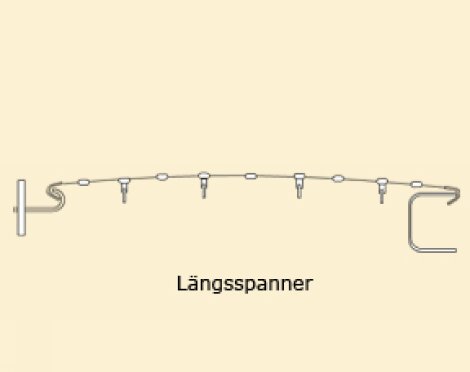

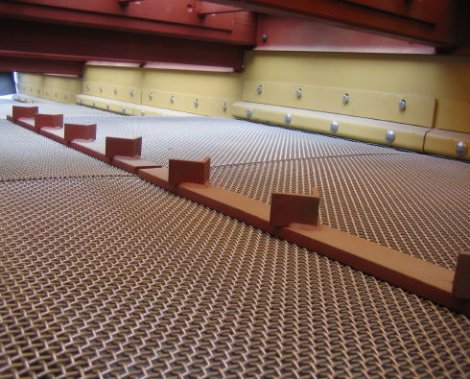

"Meister" industrial nets are produced complete with edging, ready for mounting on a vibrating screen.

Some of the most commonly used models are:

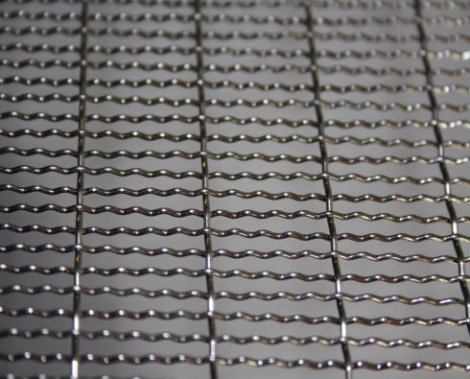

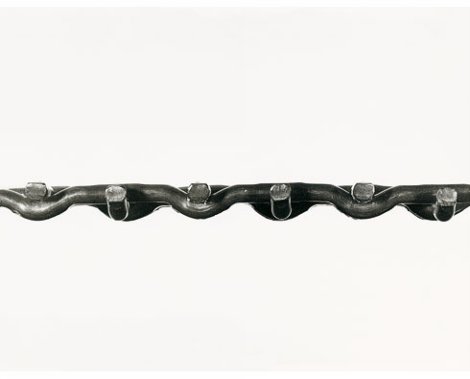

Mach with a flat top surface

- for sowing materials of medium and larger granulation.
- the net is completely flat on the upper side, which prevents the shredding of the sifted material
- made of extremely strong wire, resistant to wear, made of manganese steel
- strength: 90 - 110 kg / mm2
- with wire thicknesses of 7 - 12.5 m

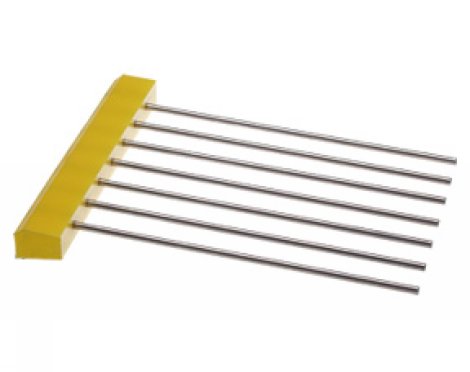

Sieving surface "bar sizer"

- accurate sieving, with narrow granulation limits
- special high quality chrome-nickel steel
- strength: 160 - 180 kg / mm2
- there is no possibility of gluing the material, because each part oscillates with a different frequency

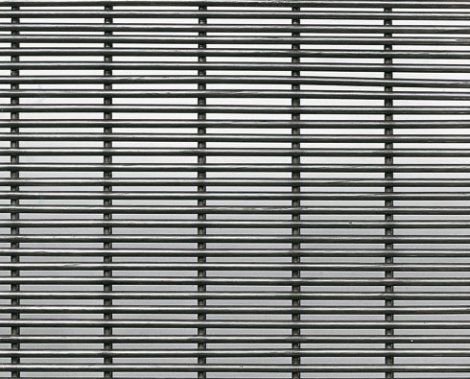

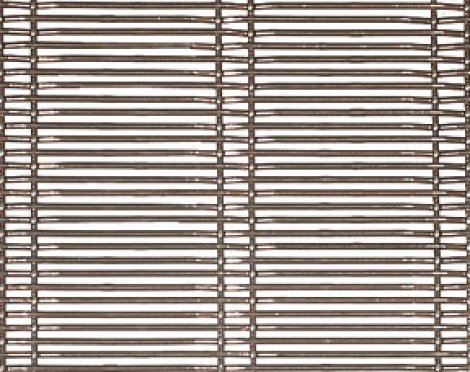

"Harf" mash, straight on one side

- for water removal, sowing sand or gravel
- straight profiles of both longitudinal and transverse wires

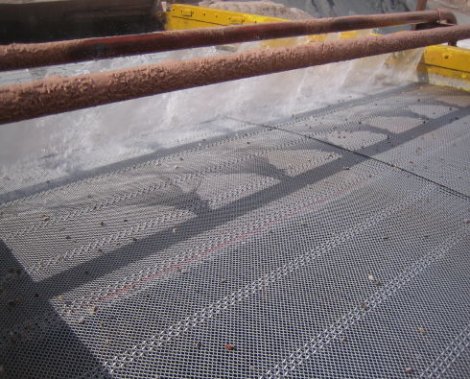

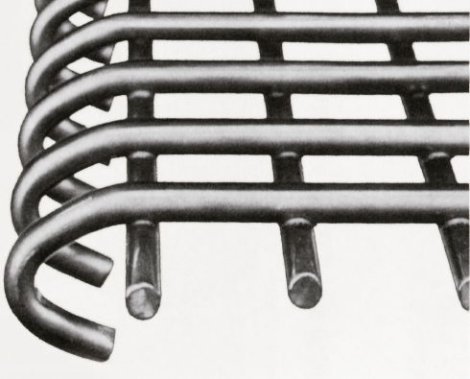

Water removal mash, welded construction

- for water removal when sowing sand, gravel, salt, ore, solid minerals, etc.
- high stability, without the possibility of changing the size of the opening in operation, for maximum sowing performance

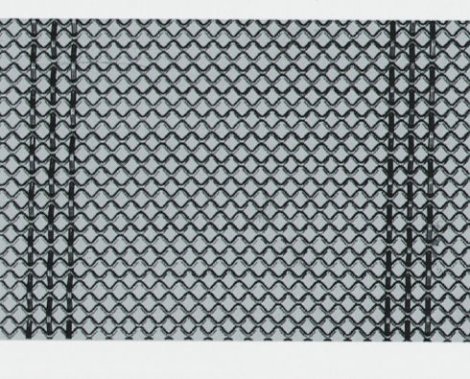

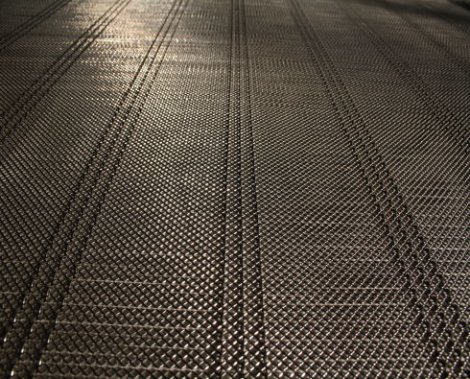

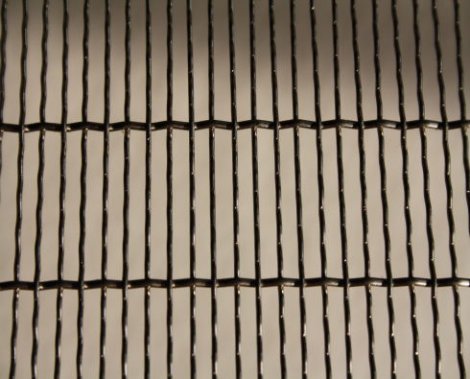

"Harf" mash - type B

- for sowing sand, gravel, coal, all types of ores, etc.
- with self-cleaning function, thanks to the fact that the longitudinal wires are bent in a horizontal plane

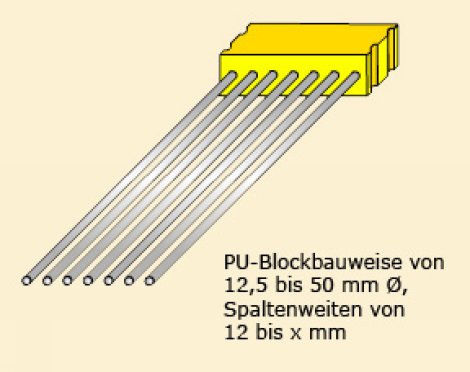

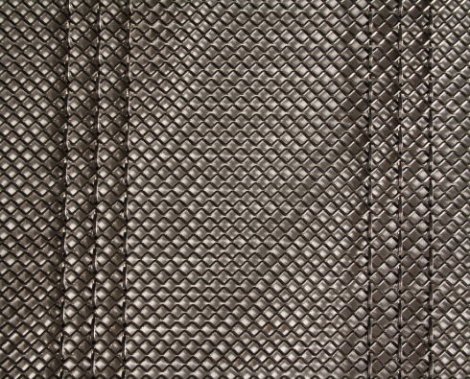

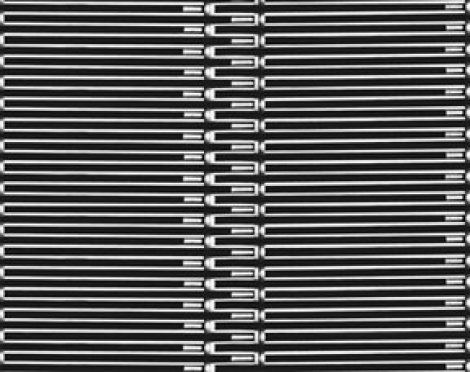

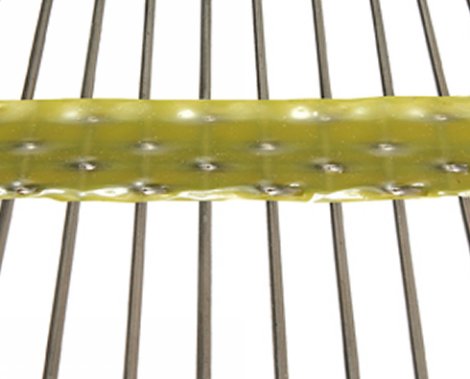

"Harf" mash - type G

- for dry and wet sowing, sowing of waste from furnaces or chemical industry
- suitable for installation on sieves with high oscillation frequencies
- extremely large "bright" surface, because the net relies only on longitudinal load-bearing elements
- with built-in guide wires, which are removed during installation
- wires interconnected by polyurethane

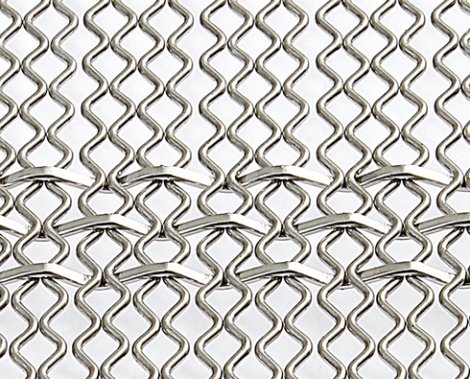

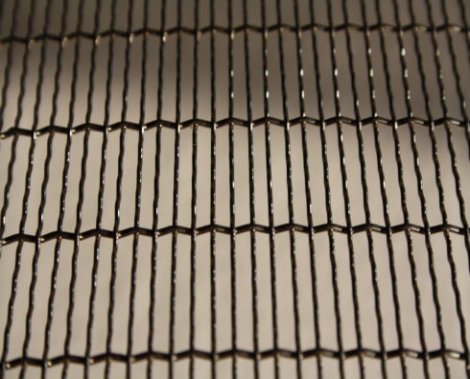

"Harf" mash

- za sejanje loptastih materijala, peleta
- za suvo ili mokro sejanje
- sa funkcijom samočišćenja, ali sa vertikalno savijenim podužnim žicama
- od opružnog ili hrom-nikl čelika
- for sowing ball materials, pellets
- for dry or wet sowing
- with self-cleaning function, but with vertically bent longitudinal wires
- made of spring or chrome-nickel steel

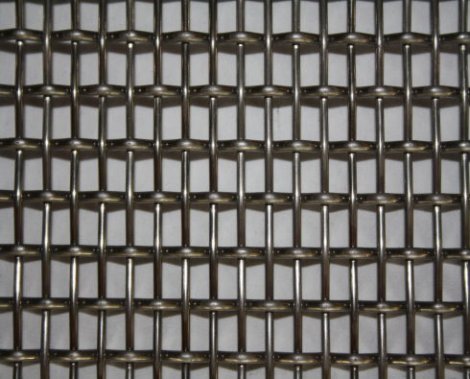

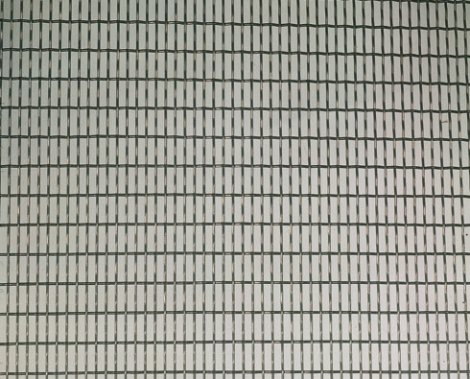

Mash with rectangular openings

- for sowing sand, gravel, salt, ore, solid minerals, etc.
- very stable opening size, with a larger "bright" surface, for maximum sowing capacities

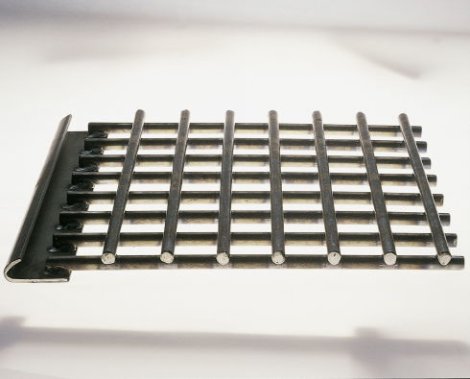

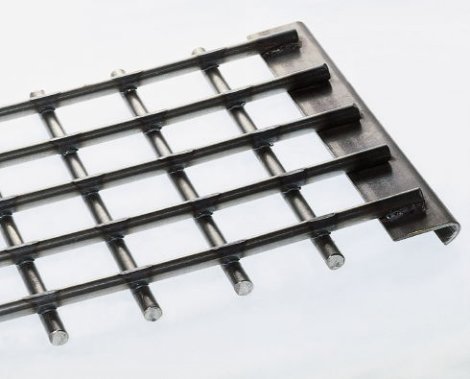

Type F mash - electrowelded

- for accurate sowing of medium and large granulation material, with higher loads on the network
- increased sowing performance, because there is absolutely no accumulation of grain on the surface of the net
- extremely long service life
- made of manganese steel, strength 80-100 kg / mm2, can also be produced in "VA" quality
- for wire thicknesses from 5 to 20 mm

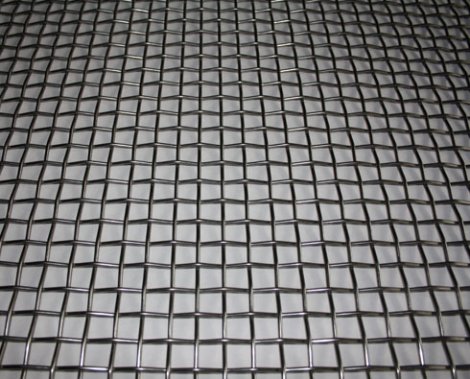

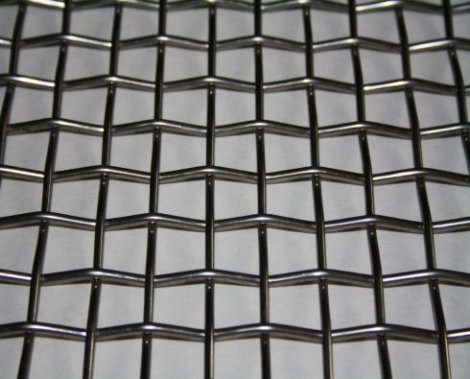

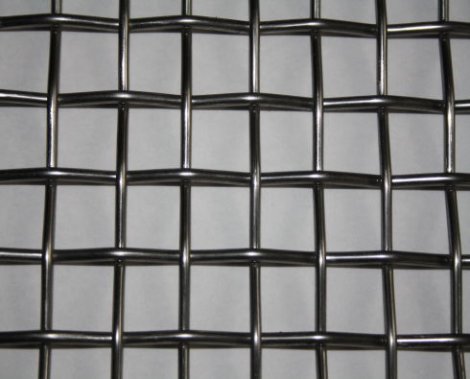

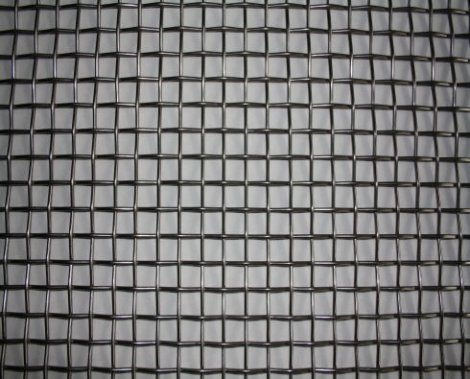

Mash with square openings - type A

- for sowing sand, gravel, coal, all types of ores, etc.
- made of high quality steel wire, strength 160-180 kg / mm2
- made of spring or chrome-nickel steel

×	×	×	×	×	×
×	×	×

Mehanika as a company independent of the Aleksinac coal mines first started operating in 1976. Based on the experience and knowledge gained in the maintenance of equipment for coal mines, in 1980 it began a more intensive development in the manufacture of machines and complete plants. Since then, a large number of machines with their subtypes have been adopted. Along with intensive development, machinery and equipment are also exported to other countries. We are able to offer you plants with a capacity of 20 m3 / h to 100 m3 / h. If you need any additional information, do not hesitate to contact us.
